The ION-SERIES

High quality outdoor rated fiber optic light sources for commercial and residential applications.

ION-100 Outdoor Rated, 10 Watt Color Changing LED, Fiber Optic Lightsource

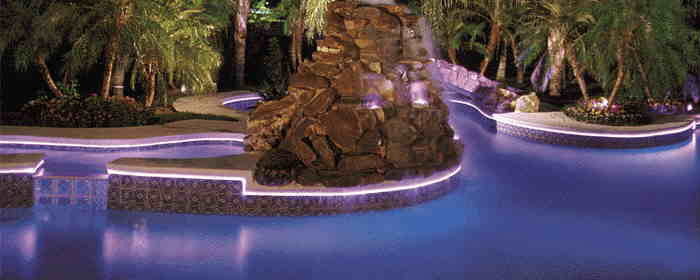

Outdoor rated RGB+W LED Light Source for Fiber Optic Lighting. The ION 100 is ideal for fiber optic lighted waterfalls and lighted water features. With a powerful RGB+W LED the ION100 works with industry standard 12VAC PX-100 and PX-300 transformers for easy installation and hook up.

APPLICATION

The ION-100 Series LED Light Source is a RGBW multi-controllable light engine designed for the outdoor architectural, pool and spa industry. This light source can be controlled as a standalone or can be programmable using DMX 512, RS232 SERIAL, RF and Simple controller.

HIGH CONTROL RESOLUTION

The ION-100 DIS Series LED Light Source supports a 16-bit control resolution per output channel for accurate dimming and fine color mixing..

LOW EMI

Slow-rate controlled dimming and shielded conductors keep the driver’s EMI emissions at a very low level.

ROBUST THERMAL MANAGEMENT

The ION’s Sync® module creates turbulent, pulsated air-jets that can be directed precisely to locations where thermal management is needed. The vortex-dominated SynJet flow enhances small-scale mixing near the heated surfaces to yield higher effective heat transfer at low-volume flow rates compared to conventional air movers. The SynJet flow is created using a patented actuator technology and proprietary fluidic packaging expertise.

FEATURES

• 2700 lumen output - brightest in the industry
• Thermal sensor protection for longer LED lifespan

ADVANTAGES

• Accurate, smooth dimming and high-res color mixing
• Drive, control and thermal protection per fixture
• Easy networking

Specification Installation Manual


ION-8000 Outdoor Rated, 80 Watt White LED, Fiber Optic Lightsource

The ION-8000 Series LED Light Source is a multi-controllable light engine designed for the outdoor architectural, pool and spa industry . This light source can be used as a standalone or can be programmable using DMX 512, RS232 SERIAL, RF and Simple Dimmer Controller.

HIGH CONTROL RESOLUTION

The ION-8000 LED Light Source supports a 15-bit control resolution per output channel for accurate dimming and fine color mixing.

LOW EMI

Slow-rate controlled dimming and shielded conductors keep the driver’s EMI emissions at a very low level.

ROBUST THERMAL MANAGEMENT

The ION’s Sync® module creates turbulent, pulsated air-jets that can be directed precisely to locations where thermal management is needed. The vortex-dominated SynJet flow enhances small-scale mixing near the heated surfaces to yield higher effective heat transfer at low-volume flow rates compared to conventional air movers. The SynJet flow is created using a patented actuator technology and proprietary fluidic packaging expertise.

FEATURES

• 4000 lumen output - brightest in the industry
• Thermal sensor protection for longer LED lifespan

ADVANTAGES

• Accurate, smooth dimming and high-res color mixing
• Drive, control and thermal protection per fixture
• Easy network

Specification Installation Manual
